The proven performance of self-priming piston transfer pump allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.

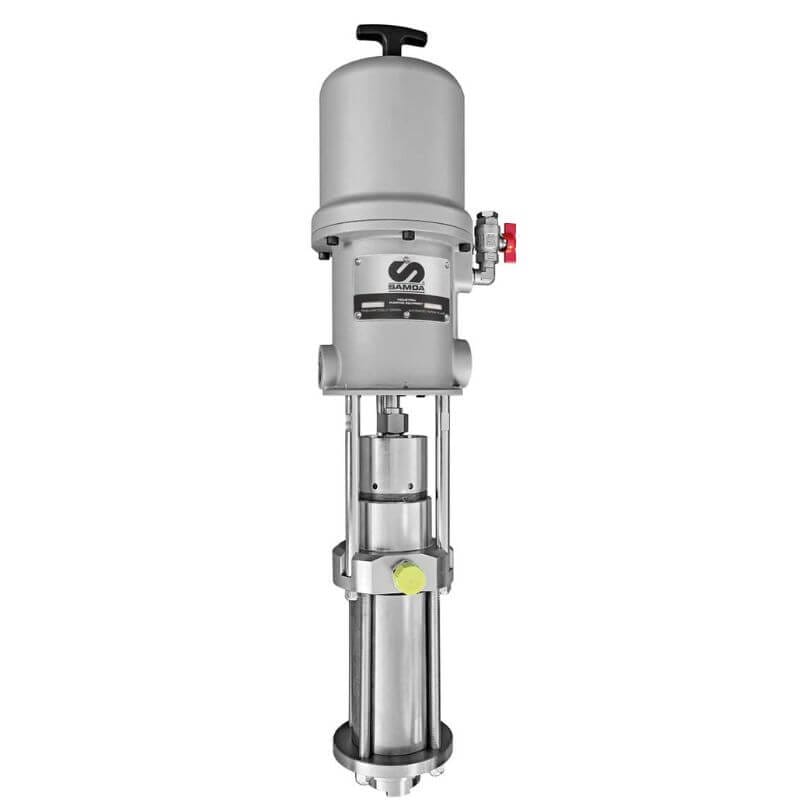

The Ghibli 3:1 pneumatic piston pump with its solid structure is available in short – medium – long version in carbon steel or stainless steel material to reach a long-lasting performance.

Advantages

  • Atex certified Ex II 2 G c IIB T6
  • Low starting pressure
  • Fast priming product flow
  • Adjustable material flow
  • High quality material gaskets
  • No product leakage
  • Low noise level
  • Less components and reduced maintenance

a

Request quote
Compare product Categories: , Tags:

Additional information

Version

Lunga / Media / Corta
Max. flow rate at 60 cycles/ min

45 l/min
Air pressure range

3-7 bar / 40-100 psi
Max. fluid outlet pressure

21 bar – 300 psi
Delivery per cycle

680 cc
Air consumption at 60 cycles / min

3 bar – 500 l/min
5 bar – 840 l/min
7 bar – 1200 l/min
Air supply inlet

3/8″ BSPP (F)
Material inelt

Versione corta 1 1/2" BSPP (F)
Fluid outlet

3/4″ BSPP (M)
Materiale pompante

Stainless steel AISI 303 – Rame / Acciaio al carbonio – Rame
Piston material

Stainless steel AISI 420 B
Seals material

PTFE
Effective motor diameter

Ø 18 – 450 mm
Piston stroke

4″ -100 mm
Air-operated transfer pumps catalogue
  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Paint circulation
  • Bonding
  • Paper - cardboard processing
  • Leather processing
  • Woodworking
  • Metal working
  • Lubrication
  • Packaging
  • Coating and laminating
  • Flexographic printing
  • Chemicals products transferring
  • Adhesives
  • Glues
  • Detergents
  • Release agents
  • Lubricating greases
  • Inks
  • Lacquers
  • Mineral oils
  • Vegetable oils
  • Primer
  • Chemical products
  • Low viscosity resins
  • Tinctures
  • Water based paints
  • Solvent based paints
  • Air motor valve repair kit Code LA40401
  • Motor gasket kit Code LA40050
  • Pneumatic regulator kit Code LA40051
  • Air exhaust kit Code LA40052
  • 680 cc lower PTFE gasket kit Code LA40245
  • Wall mounting bracket kit Code LA91200/1
  • Trolley Code LA96320
  • Stainless steel low pressure flow regulator for viscous products + Pressure gauge 0-14 bar Code LA7204
  • Stainless steel low pressure regulator visocus for viscous produts with increased thickness diaphragms + Pressure gauge 0-20 bar Code LA7204/1
