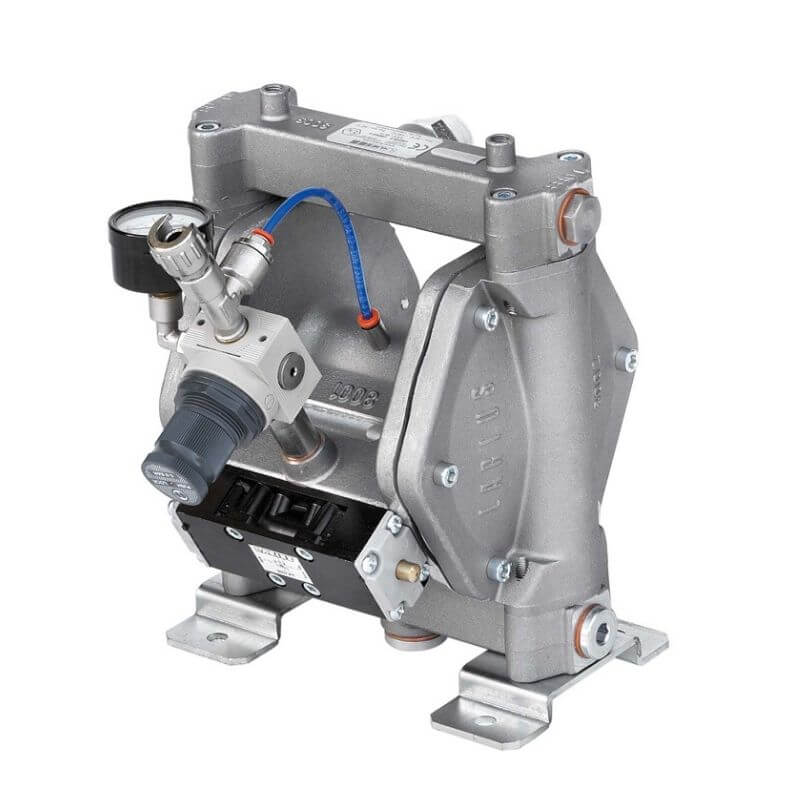

Larius-L2-pompa-pneumatica-travaso-doppia-membrana

The proven performance of self-priming double diaphragm package allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.

The L2 1:1 air operated transfer unit, with a robust structure, is available in the aluminum or stainless steel version to reach a long-lasting performance.

Advantages

  • Atex certified Ex II 2 G c IIB T4
  • Low starting pressure
  • Small and compact design
  • Fast priming and immediate product flow
  • Adjustable material flow
  • Reinforced diaphragms
  • No product leakage
  • Low noise level
  • Less components and reduced maintenance



Request quote
Compare product Categories: , Tags:
Subscribe to newsletter

Additional information

Air pressure range

1-7 bar / 15-100 psi
Max. fluid outlet pressure

7 bar – 100 psi
Air consumption at 60 cycles / min

3 bar – 120 l/min
5 bar – 230 l/min
7 bar – 300 l/min
Air supply inlet

1/4" BSPP (F)
Material inlet

1/2" BSPT (M)
Fluid outlet

1/2" BSPP (M)
Materiale membrane contatto prodotto

PTFE
Materiale membrane contatto prodotto abrasivo

Poliuretano telato
Materiali pompa inox contatto prodotto

AISI 316 – AISI 303 – PTFE
Materiali pompa alluminio contatto prodotto

Alluminio AISI 12 – UNI 5076 – PTFE
Acciaio zincato – Acciaio inox AISI 303 / AISI 304
Suction lift

5 m
Solids in suspension max.size

2,4 mm
Air-operated transfer pumps catalogue
  • Paint circulation
  • Bonding
  • Paper - cardboard processing
  • Leather processing
  • Woodworking
  • Metal working
  • Lubrication
  • Packaging
  • Coating and laminating
  • Flexographic printing
  • Chemicals products transferring
  • Adhesives
  • Antifreeze
  • Glues
  • Detergents
  • Release agents
  • Inks
  • Lacquers
  • Lubricants
  • Mineral oils
  • Vegetable oils
  • Primer
  • Abrasive products
  • Chemical products
  • Low viscosity resins
  • Tinctures
  • Water based paints
  • Solvent based paints
  • Motor gaskets kit Code LA40335
  • 4 balls housing + 4 balls kit Code LA40334
  • Diaphragm kit Code LA40331
  • Diaphragm abrasive product kit Code LA40331/1
  • Wall mounting bracket kit Code LA91200/2
  • Air pressure regulator 1/4″ + Pressure gauge 0-10 bar Code LA3345
  • Tubo di aspirazione completo Code LA95034
