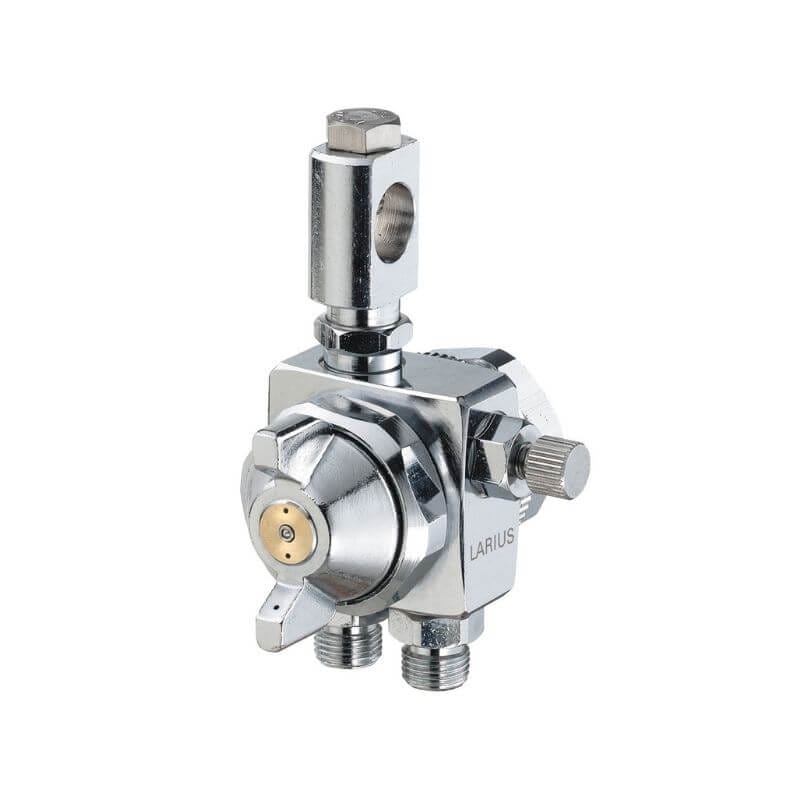

RAC2 low pressure automatic spray gun

RAC2 series – automatic guns for low pressure painting.

Nozzle kit included

• Superior spray quality
• Uniform atomization
• Transfer efficiency and material saving
• Quick and easy installation









Request quote
Compare product Category: Tags:
Subscribe to newsletter

Additional information

Ingresso fluido

1/4" BSPP
Uscita fluido ml/min

RAC2 Ø 0,5 mm – 60 ml/min
RAC2 Ø 1,0 mm – 250 ml/min
RAC2 Ø 1,3 mm – 360 ml/min
RAC2 Ø 2,0 mm – 600 ml/min
Max. fluid pressure

8 bar
Ingresso aria

1/8" BSPP
Tubo attacco rapido Ø 8×6
Max. air pressure

7 bar
Consumo aria l/min

RAC2 Ø 0,5 mm – 60 l/min
RAC2 Ø 1,0 mm – 80 l/min
RAC2 Ø 1,3 mm – 100 l/min
RAC2 Ø 2,0 mm – 140 l/min
Ventaglio mm

RAC2 Ø 0,5 mm – 200 mm
RAC2 Ø 1,0 mm – 250 mm
RAC2 Ø 1,3 mm – 350 mm
RAC2 Ø 2,0 mm – 400 mm
Weight

300 g
Painting accessories catalogue
  • Paint circulation
  • General industrial finishing
  • Woodworking and furniture
  • Metal working
  • Leather treatment
  • Glossy finishes
  • Fixatives
  • Base coat
  • Impregnating agents
  • Lacquers
  • Mordants
  • Primer
  • Enamels
  • Tinctures
  • Single component airless paint – water/solvet not refractive
  • Water based paints
  • Solvent based paints
  • Catalysed paints



Nozzle code – Ø

Air cup code – Ø

Needle code – Ø

LA14510 – 0,5 mm

LA14501 – 0,5 mm

LA14520 – 0,5 mm

LA14511 – 1,0 mm

 LA14502 – 1,0 mm

LA14521 – 1,0 mm

LA14512 – 1,3 mm

LA14503 – 1,3 mm

 LA14522 -1,3 mm

LA14513 – 2,0 mm

LA14504 – 2,0 mm

LA14523 – 2,0 mm
